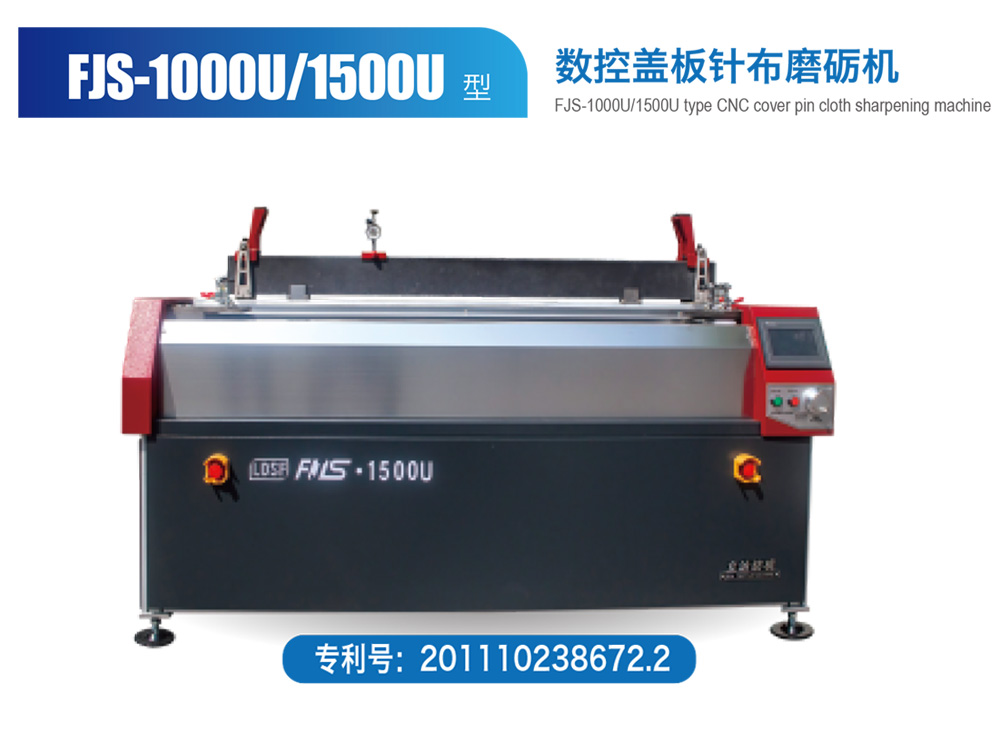

FJS--1000U-1500U-型數控蓋板針布磨礪機
功能及特點 Function and characteristics
采用二組高精度導軌的數控運行磨礪系統小車，確保運行平穩和精準的直線度。
配置無損耗的特殊碗形砂輪和油石頭，使得磨礪效果突出，針尖無明顯毛剌。
修整更換蓋板針布后由于龍骨、針布、包覆的整付平整度差異，
滿足用戶管理標準或工藝要求，達到整臺付平整差異最小化。
特殊磨料的平面砂輪對修整平整度的效能非常高。
蓋板針布使用壽命在80%內，應用配置的油石系統來改善已磨損的針布針尖鋒利度，延長蓋板針布分梳性能。
Two sets of high-precision guide rails are adopted to ensure smooth running and accurate straightness.
Special bowl-shaped grinding wheel and oil stone are equipped with no loss, so that the sharpening
effect is prominent and the needle tip has no obvious hairiness.
After dressing and replacing the cover sheet, due to the difference of the whole flatness of the keel,
the needle cloth and the covering, it can meet the user's management standards or process requirements and
achieve the minimum of the whole table payment difference. Surface grinding wheels with special
abrasives are very efficient at trimming flatness.
When the service life of the cover cloth is less than 80%, the configured oil stone system is applied to
improve the sharpness of the worn needle cloth and extend the combing performance of the cover cloth.
技術參數及規格 Technial Parameters
電 源 power supply 220V+PE
整機功率 Total power 1150W
FJS-1000U型加工蓋板針布長度 Card clothing length of processing cover 1020mm
FJS-1500U型加工蓋板針布長度 Card clothing length of processing cover 1020-1500mm
磨頭轉速 Grinding speed 2500-6000RPM
磨頭移動速度 Processing moving speed 700-3000mm/min
油石珩磨 Whetstone Honing 300次往復 reciprocations 動程Movement：3mm
