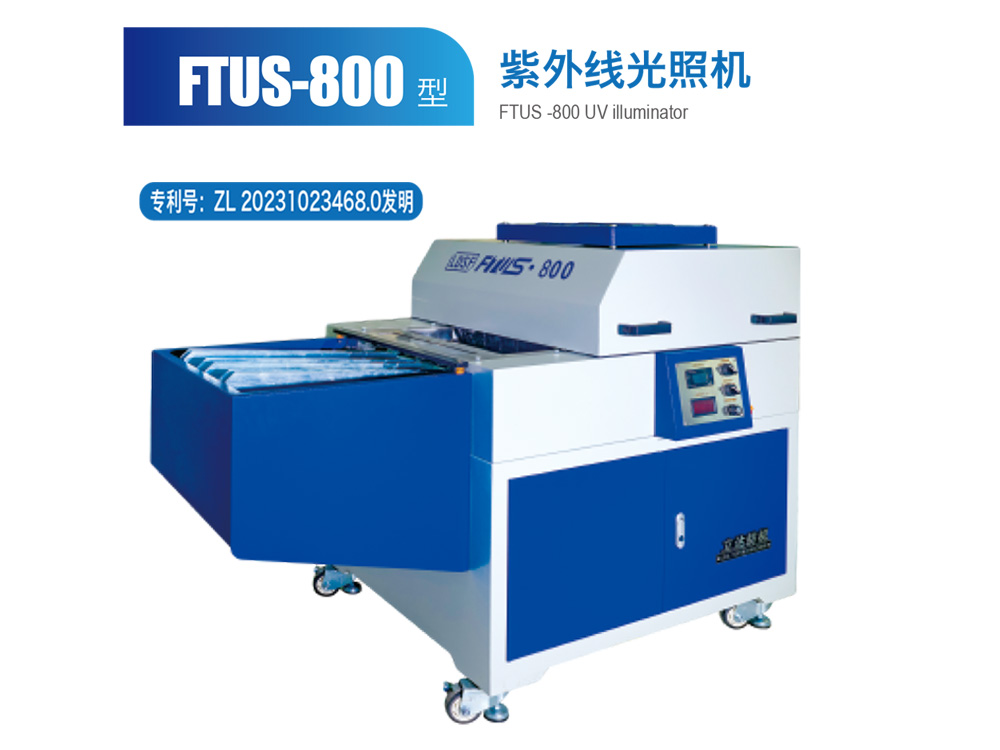

FTUS--800型紫外線光照機
功能及特點 Function and characteristics
光照機采用平板輥推方式輸送，改變以前公轉
自轉的復雜易出故障的方式，皮輥在照射區平均勻
受光，本機在入料部位配置了四個滾道，十分方便
人工輸料。
The light machine is transported by flat roller push,
which changes the complicated and easy failure
mode of the previous revolution and rotation.
The roller receives light evenly in the irradiation area.
The machine is equipped with four raceways in the
feeding part, which is very convenient for manual
feeding.
技術參數及規格 Technial Parameters
電源 power supply 220V+PE
整機功率 Total power 1000W
UV燈管功率 UV lamp power 4X240W 365nm
光照時間 Illumination time 40S-180S
加工范圍 Processing range 長度（L)420mm,直徑：ф26-45mm
