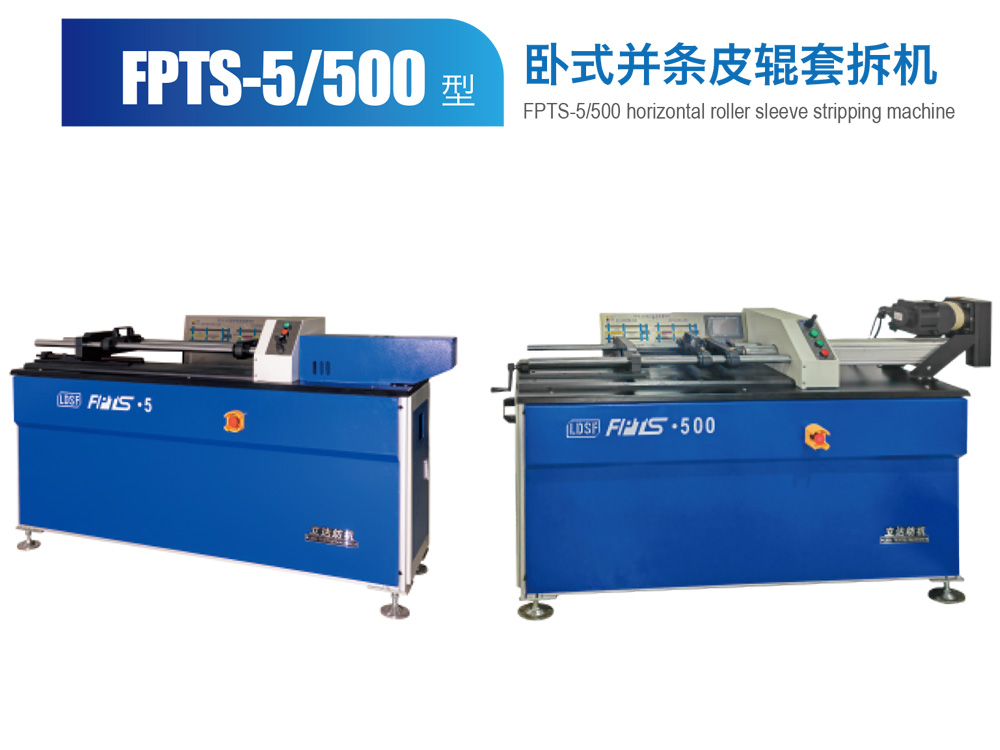

FPTS--5-500型臥式并條皮輥套拆機
功能及特點 Function and characteristics
FPTS-5是采用液壓系統，F(xiàn)PTS-500采用伺服控制缸作為動力的主要部件，
動力輸出平順，滑動平臺提高上下套拆模具的配合精度，改進
了套拆模具的定位方式，使調整更為方便，
FPTS-500還配置的壓力傳感器，直觀地體現在套制過程中壓力動態變化。
FPTS-5 adopts hydraulic system, FPS-500 adopts servo control cylinder
as the main component of power, smooth power output,
sliding platform improves the matching accuracy of the upper
and lower sleeve disassembly mold, improves the positioning
mode of the sleeve disassembly mold, and makes adjustment more
convenient, FPTS-500 is also equipped with pressure sensor,
which intuitively reflects the dynamic change of pressure
during the sleeve making process.
技術參數及規格 Technial Parameters
電源 power supply
FPTS-5型 380V+PE線
功率: 2200W
FPTS-500型 220V+PE線
功率: 2200W
最大壓力 Maximum pressure 2800KG
套壓行程設定 Stroke setting 0-500mm
加工并條長膠輥范圍 Processing range
橡膠圈長度Length120-400mm
內孔Inner bore16-30mm
